Product Overview

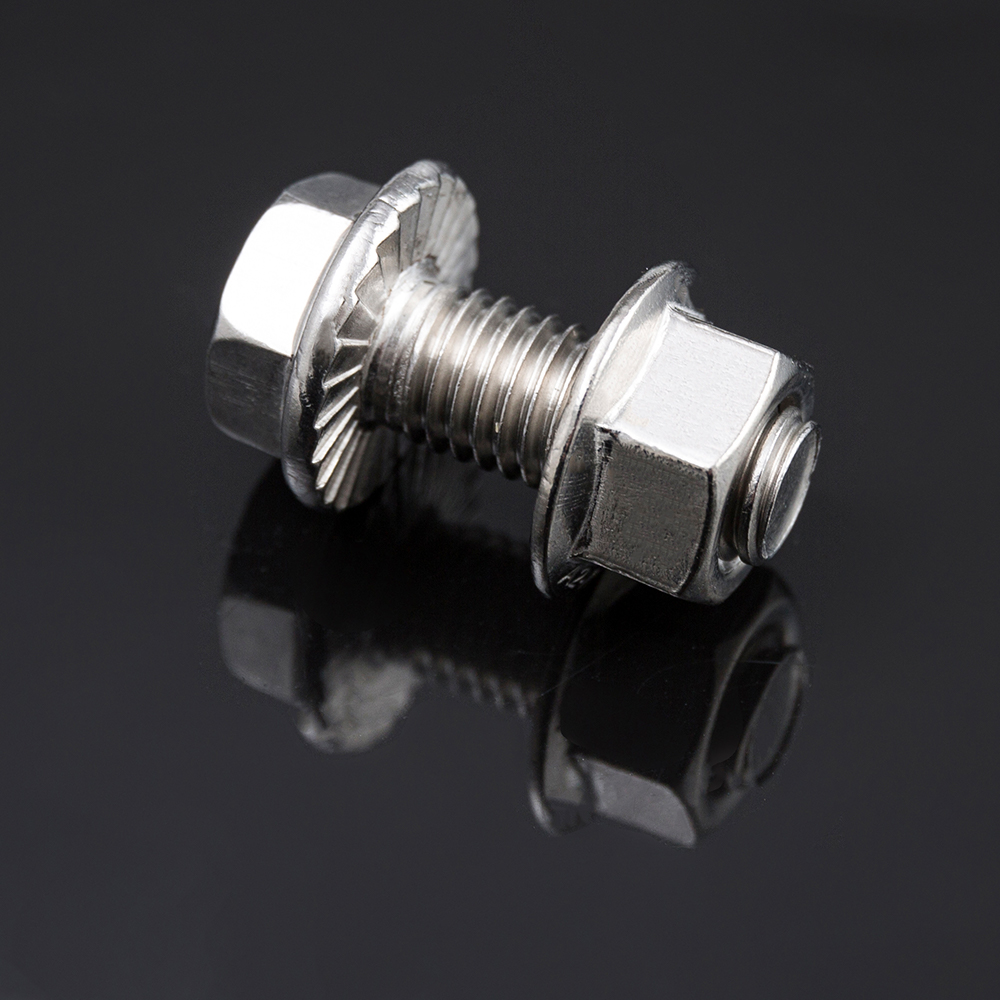

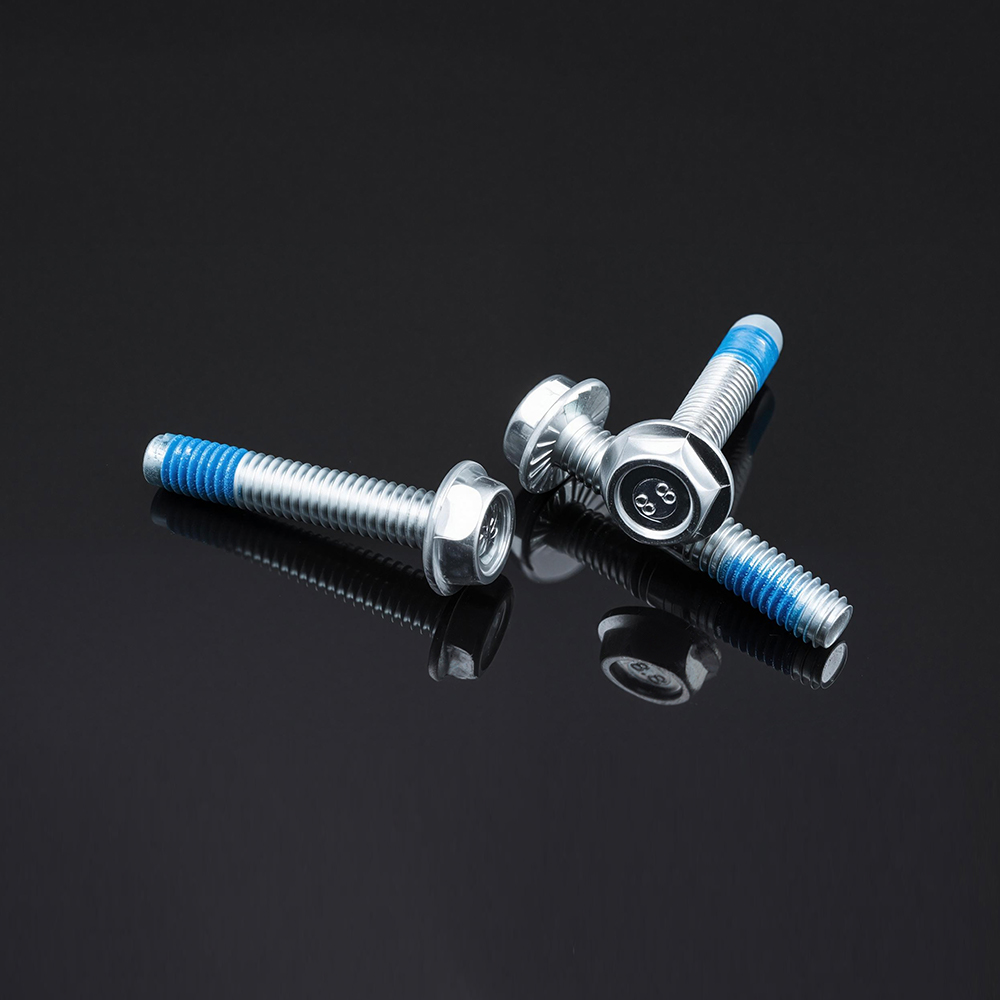

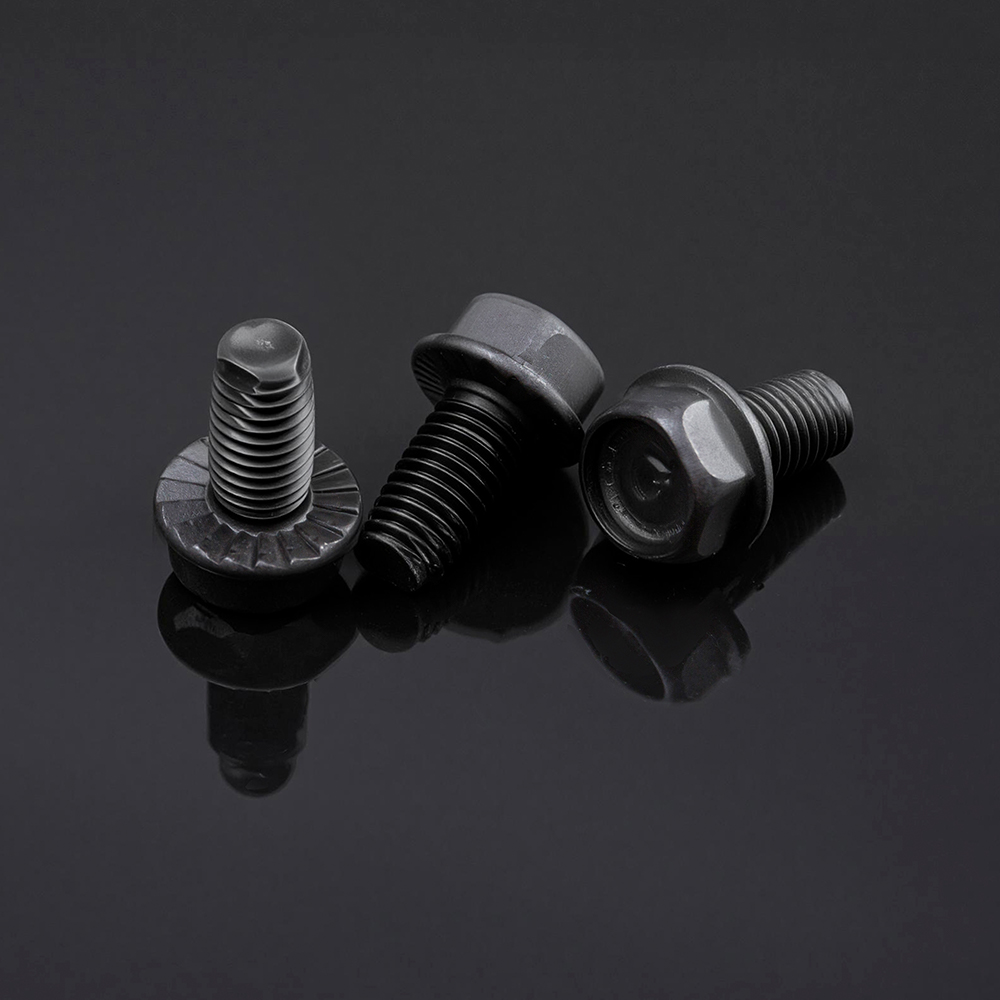

The Hex Flange Bolt with serration combines an integrated flange with anti-rotation teeth for exceptional vibration resistance.
Key Features
Serrated flange bites into mating surfaces to prevent loosening under constant vibration.
Integrated washer design eliminates the need for separate hardware, reducing assembly steps.
Available in metric (M5-M16) and imperial (#10-5/8") sizes.
Standard hex head allows for quick installation with common tools.
| Grade | SAE Grade 5.8 / 8.8 / 10.9 / 12.9 (ISO 5.8/8.8/10.9/12.9 equivalent) |
| Size Range | M5–M36 (custom sizes available) |
| Thread Type | Metric (ISO metric thread) / UNC / UNF (customizable) |
| Standards | DIN 931 / DIN 933 / ISO 4014 / ISO 4017 / ASTM A307 (switchable per request) |
| Heat Treatment | Quenched and Tempered (Q&T) |
| Tensile Strength | ≥ 500–1200 MPa (depends on grade) |
| Yield Strength | ≥ 400–1080 MPa (depends on grade) |
| Hardness | HRC 22–39 (grade-specific) |
| Head Style | Hex Head (external hexagon) |
| Thread Class | 6g (metric) / 2A / 3A (imperial) |
| Operating Temperature | -40°C ~ 250°C |
| Material | Carbon Steel / Alloy Steel / Stainless Steel 304 / 316 |
| Surface Finish | Plain / Zinc Plated (blue/yellow/black) / Black Oxide / HDG / Dacromet |
| Matching Parts | Hex Nuts (DIN 934), Flat Washers (DIN 125), Spring Washers (DIN 127) |
Common Applications
Automotive assemblies, agricultural machinery, industrial pumps, conveyor systems, and equipment operating in high-vibration environments.
